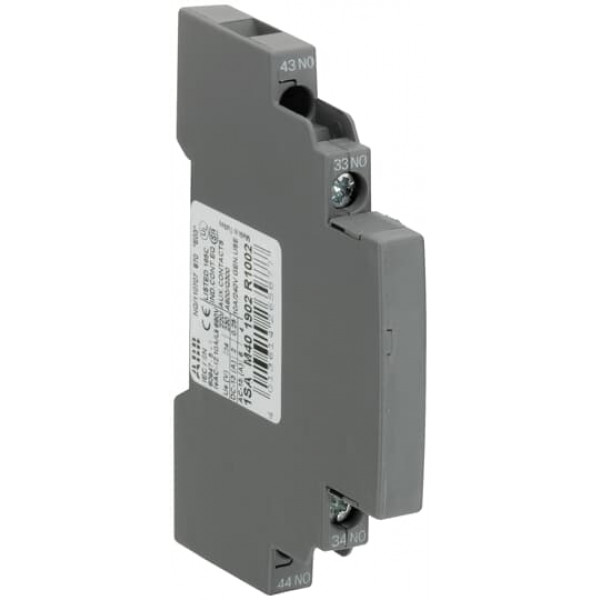

ABB HKS4-11 pomocný kontakt /1SAM401902R1001/

Popis zboží ABB HKS4-11 pomocný kontakt /1SAM401902R1001/

Pomocný kontakt HKS4-11 1SAM401902R1001

Technical
690 V
Main Circuit 690 V
Rated Operational
Voltage
(230 V) 4 A
(24 V) 6 A
(400 V) 3 A
Rated Operational
Current AC-15 (Ie)
(110 V) 0.5 A
(220 V) 25 A
(24 V) 1 A
Rated Operational
Current DC-13 (Ie)
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Rated Frequency (f)
690 VRated Insulation Voltage
(Ui)
IP20Degree of Protection
Flexible with Ferrule 1/2x 0.5 ... 1.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible 1/2x 0.5 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1 mm²
Rigid 1/2x 0.5 ... 1.5 mm²
Rigid 1/2x 0.75 ... 2.5 mm²
Connecting Capacity
Auxiliary Circuit
Auxiliary Circuit 0.8 ... 1.2 N·mTightening Torque
Auxiliary Circuit 10 mmWire Stripping Length
Pozidriv 2Recommended Screw
Driver
1Number of Auxiliary
Contacts NO
1Number of Auxiliary
Contacts NC
0Number of Auxiliary
Contacts CO (SPDT)
10 AConventional Free-air
Thermal Current (Ith)
CSA 22.2 No. 14
IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 508
Standards
Auxiliary ContactProduct Name
Auxiliary Circuit - gG Type Fuses 10 AShort-Circuit Protective
Devices
MS450
MS451
MO450
MS495
MS496
MS497
MO495
MO496
Suitable For
Manual Motor StarterSuitable for Product
Class
ElectricalAccessory Group
Auxiliary Contact
